DC Motor

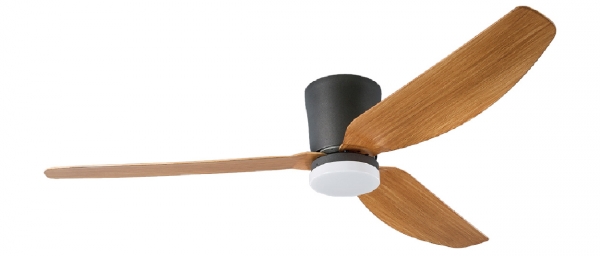

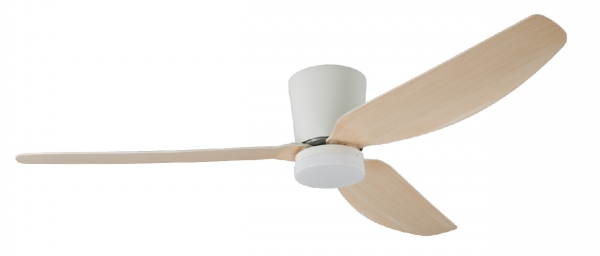

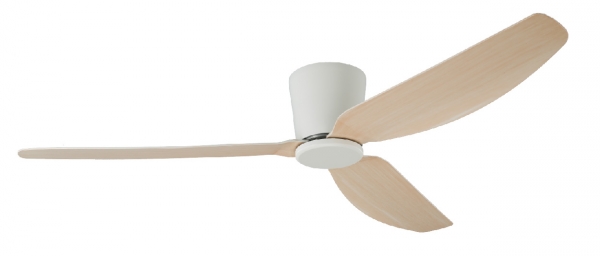

Hugger Airborne

PRODUCT SPECIFICATIONS
54
120V / 60Hz,240V / 50Hz
85X25mm
Aluminum
ABS
AGP, BK, WH
6 speeds - Reversible function available
RF Handheld remote controller
18W Dimmable LED light or No light
Made in Taiwan
Product performance

Input Speed Output current (A) Output power (W) RPM CFM
120V / 60Hz
240V / 50Hz
1 0.20 19.9 190 N/A
2 0.15 13.5 160 N/A
3 0.12 9.2 140 N/A
4 0.10 6.1 110 N/A
5 0.09 3.8 90 N/A
6 0.08 2.7 60 N/A

Data above is for reference only, the performance can be set upon request.
